Klick Scrambler
The essence of sportiness. Thanks to its powerful high-performance motor, you can tackle any route, and, thanks to the all-road tyre with extra-large 80mm footprint, always have maximum traction in all conditions and on inclines. Comes standard with 300/8 wide-section all-road tyre and electronic driving assistance systems MDC, EBS, IBS.
Technical characteristics
Technical characteristics
Technical characteristics
13,3 Inch
11,8 Kg
48V
60Km*(1)
MDC
EBS
ISC
HHC
Motor
Brushless 750W
Wheel diameter
13.3 Inch/340mm W.80mm HT
Torque
65Nm
Weight
11,8Kg
Range *(1)
60/30/15km
Max Speed *(2)
20Km/h
Self-adapting stand
Standard
Customizable driving parameters
Standard
Mechanical brakes
N°1/160mm disc/1 callipers
MDC - Motion Direct Control
Standard
EBS - Electronic Brake System
Standard
ISC - Intelligent Speed Control
Standard
Reverse gear
Standard
HHC «Hill Holder»
Optional
Standard tyre
Off-road 300/8 (W 80 mm)
LED headlight
Optional
*(1) The range depends on the type of battery installed. The indicated values refer to tests conducted on flat ground at a speed of 10 km/h with a user weight of 75 kg.
*(2) The indicated speed is the maximum speed of the device, but please check the legal limits in the country of use.
Available documentation
Klick Central Linking System
Klick Central Linking System
1. Standard Linking System (Worldwide patent)
2. Tetra Linking System (Worldwide patent)
The Klaxon design embraces ease of use. The connection of the device to the wheelchair is a simple and quick operation, even for individuals with limited upper limb mobility. The Klick can be disassembled into three parts to easily store it and minimize the space taken up during transport.
With just one ‘click’ and minimal effort, the Klaxon® linking system transforms a manual wheelchair into a motorized one. The linking can also be fully automated via driving controls. For all fixed and foldable wheelchairs, the linking system can be easily removed or folded down. The installation does not require any permanent modification to the wheelchair. The self- adaptive stand is easily removable for maximum comfort during the linking and parking stages. The ‘Tetra’ version is available.
Standard equipment
1. The stand automatically adapts to the user’s wheelchair and does not require manual adjustment during linking or parking, as it will already be in position. For car, plane, or train transport, it can be easily removed with a simple press.
2. The Klick has parking brakes located on the brake levers.
3.Klick models are equipped with dual-calliper disc brakes
4.The stability during parking and during the linking of the Klick to the wheelchair is facilitated by a lever that adjusts steering stiffness.
5. Multifunction display
6. USB Port
Cockpit standard
The ergonomics of the standard handlebar is designed to facilitate the user during driving and the linking and unlinking of the device from the wheelchair. The controls are easy to access and intuitive. Complete control of the features is at the user’s fingertips, thanks to the multifunction digital keypad, which also provides direct access to all the functions of the display menu.
Detailed information
1 On/Off
2 Lights
3 Reverse gear
4 USB Port
5 Cruise Control
6 Hill Holder
7 Forward gear
8 Gear –
9 Gear +
10 Display menu
Cockpit tetra
(Optional)
The tetra cockpit allows users to accelerate and brake by simply pressing the handlebar. Driving is easy and intuitive, even for people with reduced motor skills. You can enable electronic braking when releasing the handlebar and adjust its intensity and also use this accessory with the HHC «Hill Holder» feature, developed to assist the user when restarting on hills. A complete range of ‘TETRA’ accessories allows for maximum customization of the system.
Accessories
(26 Accessories available)
FAT wheel kit
For the wheelchair
High-visibility design
Made of high-visibility 3M Reflex material for enhanced safety during night driving. Available in a single-color version with front design or in five colours (Red-Yellow-Fuchsia-Cyan-Blue).
ALLROAD 20/40 (L.95mm)
Battery with handle
Replaces the key lock and makes it easier to remove the battery from the device.
Additional weights
(2 + 2 Kg) Ideal for increasing traction on the ground.
Red Rear Light
The red rear light is a part of the safety kit to be installed on the Klick.
LED headlight
Provided with mounting bracket.
Rearview Mirror
Adaptable to all handlebars.
Lateral Linking System
For specific applications where lateral linking to the wheelchair is required, a system is available that allows for the connection and removal of the Klick in just a few seconds. Electronically assisted linking is possible for this one too.
Basket
For everyday shopping or to comfortably carry what you need. Available in the 10- or 16-liter size.
Basket Attachment Kit
The frame, included in this kit, allows you to attach your basket to the Klick.
Complete Shopping Bag Kit
Side Shopping Bag
Inspired by the motorcycling world, the Klaxon bag is the ideal complement to the front bag, for a total biker look! Available for the left and right sides.
Shopping Bag Frame
Allows you to attach shopping bags to your Klick.
Front Shopping Bag
Inspired by the motorcycling world, the Klaxon bag is perfect for carrying your purchases or for your adventures, ‘Easy Rider’ style.
Tetra tripod handle
Tetra vertical handle (1)
Tetra vertical handle (2)
Brace for Tetra handle
Allows you to mount the various handles available in the catalogue on the handlebar.
Handlebar ends
They facilitate handlebar grip and control during manoeuvres.
Handlebar extension
Ideal for those who prefer to have the handlebar closer to their body. Extension from a minimum of 165 mm to a maximum of 237 mm. Supplied with brake cable kit.
Straight handlebar
Very compact, gives your Klick a sporty look and stance.
Tetra handlebar
Hydraulic brake calliper kit
The double piston hydraulic brake calliper provides greater progression and braking control. Check the models that support this accessory.

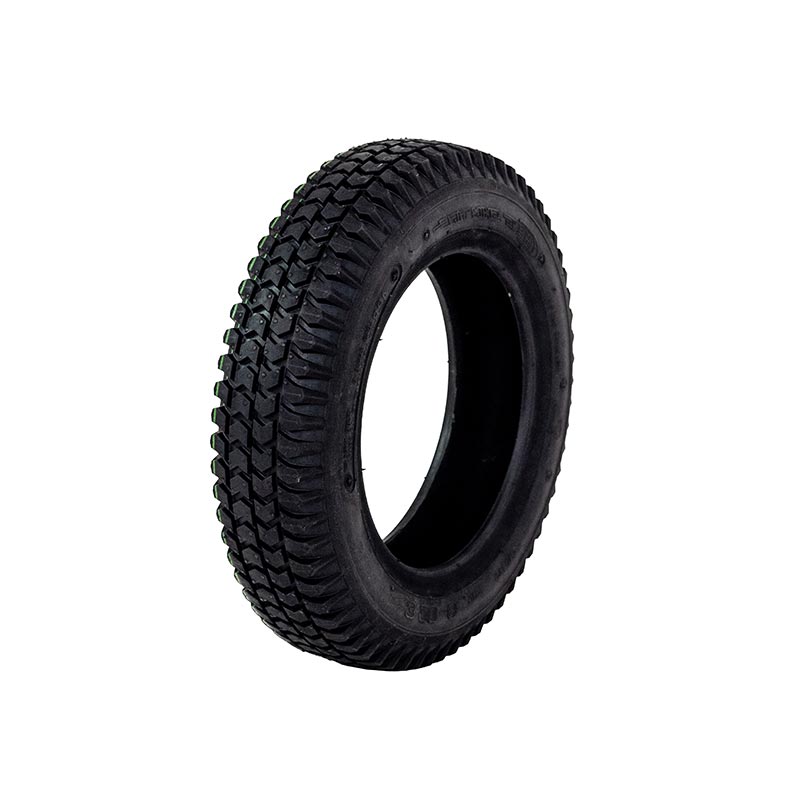

Tyres All Road HT 13,3/300-8 (L80mm)

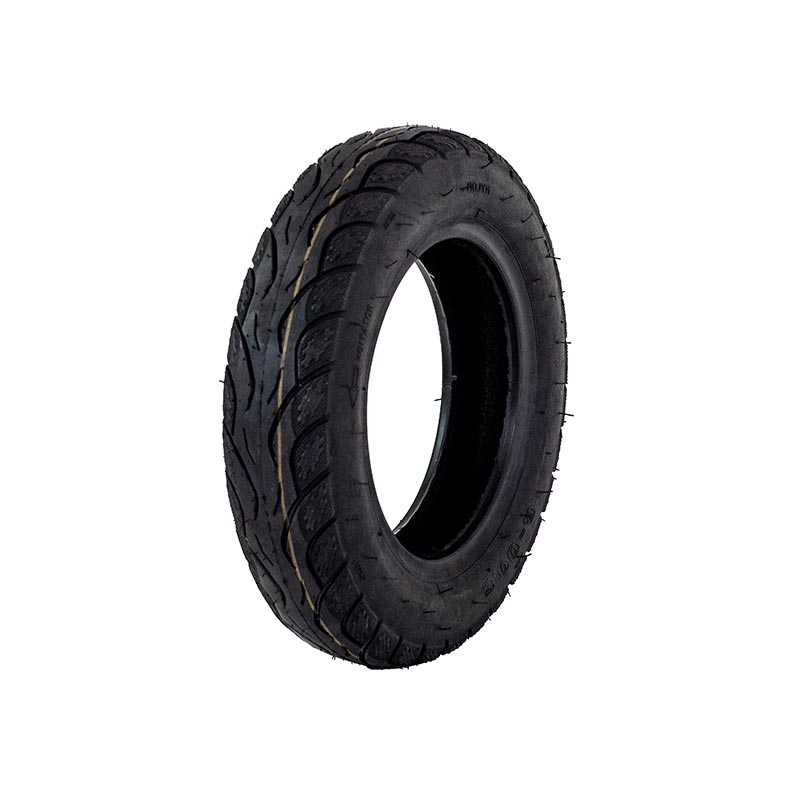

Motard HT 13,3/300-8 (L80mm)
FAT wheel kit
For the wheelchair
High-visibility design
Made of high-visibility 3M Reflex material for enhanced safety during night driving. Available in a single-color version with front design or in five colours (Red-Yellow-Fuchsia-Cyan-Blue).
ALLROAD 20/40 (L.95mm)
Battery with handle
Replaces the key lock and makes it easier to remove the battery from the device.
Additional weights
(2 + 2 Kg) Ideal for increasing traction on the ground.
Red Rear Light
The red rear light is a part of the safety kit to be installed on the Klick.
LED headlight
Provided with mounting bracket.
Rearview Mirror
Adaptable to all handlebars.
Lateral Linking System
For specific applications where lateral linking to the wheelchair is required, a system is available that allows for the connection and removal of the Klick in just a few seconds. Electronically assisted linking is possible for this one too.
Basket
For everyday shopping or to comfortably carry what you need. Available in the 10- or 16-liter size.
Basket Attachment Kit
The frame, included in this kit, allows you to attach your basket to the Klick.
Complete Shopping Bag Kit
Side Shopping Bag
Inspired by the motorcycling world, the Klaxon bag is the ideal complement to the front bag, for a total biker look! Available for the left and right sides.
Shopping Bag Frame
Allows you to attach shopping bags to your Klick.
Front Shopping Bag
Inspired by the motorcycling world, the Klaxon bag is perfect for carrying your purchases or for your adventures, ‘Easy Rider’ style.
Tetra tripod handle
Tetra vertical handle (1)
Tetra vertical handle (2)
Brace for Tetra handle
Allows you to mount the various handles available in the catalogue on the handlebar.
Handlebar ends
They facilitate handlebar grip and control during manoeuvres.
Handlebar extension
Ideal for those who prefer to have the handlebar closer to their body. Extension from a minimum of 165 mm to a maximum of 237 mm. Supplied with brake cable kit.
Straight handlebar
Very compact, gives your Klick a sporty look and stance.
Tetra handlebar
Hydraulic brake calliper kit
The double piston hydraulic brake calliper provides greater progression and braking control. Check the models that support this accessory.
Tyres All Road HT 13,3/300-8 (L80mm)
Motard HT 13,3/300-8 (L80mm)
Drive Customization
Customizing the driving experience and performance of the Klick is simple and intuitive. The user can customize the drive parameters and decide whether to activate or deactivate certain features *(1) without the help of a specialized technician. All they need to do is enter the display menu via the keypad and modify the various parameters.
The high-visibility colour LCD display is the system’s core, showing all travel information, including the remaining battery life and distance. At any time, you can use the menu to customize the drive and electronic assistance parameters.
E Braking Lv
To adjust the intensity of the regenerative electronic braking across 10 levels or disable it
Acceleration Lv
To adjust the acceleration intensity across 10 levels
Motor Brake Lv
To adjust the intensity of the electronic braking up to 10 levels
Reverse gear speed
To adjust the maximum speed in reverse
Battery Size
To select the battery type in use to receive accurate information on charge status and range
Auto light
To manage the manual or automatic headlight activation
Speed limit
To adjust the maximum speed according to the country’s limits
Trip reset
To reset the km or Mi trip
Select Km/h or Mph
To display the data in the preferred unit
Password On or Off
To protect the Klick
Reverse sound alarm
To activate or deactivate the reverse sound alarm
Serial number
To display the serial number of the Klick device
Software release
To display the installed software version of the Klick
Error history
To display any operating errors of the Klick
*(1) refer to the Klick model and its standard features.
Technology, Safety & Driving Assistance
Safety
Klaxon puts safety first and has developed specific control electronics with certified software according to the IEC62304 standard for medical devices. All Klaxon devices have passed strict life-cycle fatigue tests. All Klaxon devices have obtained the TÜV EN12184 certification – CE and FDA approved.
Multiple configurations and customizable electronics
All Klaxon Klick devices *(1) are equipped with special electronic controls that assist and facilitate driving. Users can manage these controls to determine usage and assistance levels.
MDC - Motion Direct Control
The MDC system is available in all Klick models *(1), and allows electronic acceleration and braking using only the throttle lever, giving the user total control over the device while ensuring safety in all situations. From the display menu you can activate or deactivate the feature and adjust the braking and acceleration intensity across 10 levels.
*(1) refer to the Klick model and its standard features.
EBS - Electronic Brake System
Available in all Klick models *(1), the EBS allows electronic braking via the dedicated button or simply by lightly pressing the brake lever. The mechanical brake can always be activated by pressing the lever further. EBS technology recovers energy during braking to recharge the battery. With EBS, comfort and safety are guaranteed. The system will assist you in complete safety in all circumstances and driving conditions thanks to progressive braking even on smooth or slippery surfaces. The EBS braking assistance is customizable across 10 levels and can be deactivated.
ISC - Intelligent Speed Control
The ISC system is available in all klick models *(1) and allows you to set the desired cruise control speed, maintaining it automatically both uphill and downhill. Perfect for long distances and an even more comfortable ride.
HHC - Hill Holder Control
The HHC system is optional. It assists the driver during brief stops on slopes and during restarts. The feature, which can be activated by the user via the keypad, automatically keeps the wheelchair braked both uphill and downhill whenever the speed drops below 1 km/h. Restarting on a hill will be extremely easy because the user will no longer have to coordinate the brake and accelerator and will no longer need to activate the parking brakes of the Klick or wheelchair.
